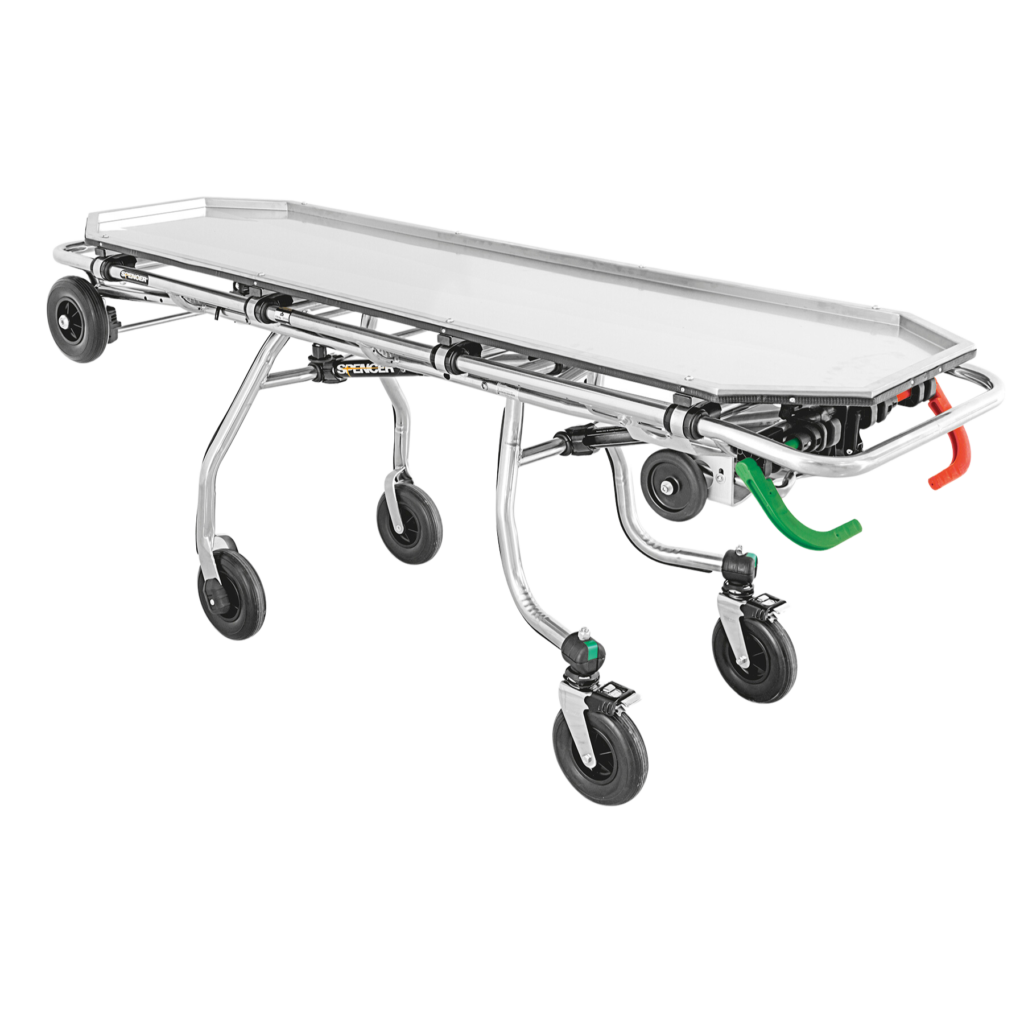

SELF-LOADING TRANSPORT STRETCHER

Z Carrera is a self loading funerary stretcher, designed for the handling of corpses, that minimizes the effort of operators when loading on the vehicle. The stretcher is characterized by a watertight stainless steel tank with draining holes with tap and hose outlet. The bottom of the tub is tilted to facilitate the flow and fluid collection. Larger diameter wheels ensure maximum smoothness even with heavy loads.

LOAD CAPACITY: 170kg

• Length:1970 ± 10mm
• Width:565 ± 10mm
• Maximum width (loading carriage wheel axis):585 ± 10 mm
• Basin average height :780 ± 10mm
• Basin depth :20 mm
• Basin height with trolley lowered :330 ± 10mm
• Loading carriage wheel height :50 ± 1 cm
• Wheels:Ø 200 mm

Link to Manual: http://support.spencer.it/manuals_n.php?lang=eng
